TurboFast

For securing Timber or MDF to bricks, blocks and concrete

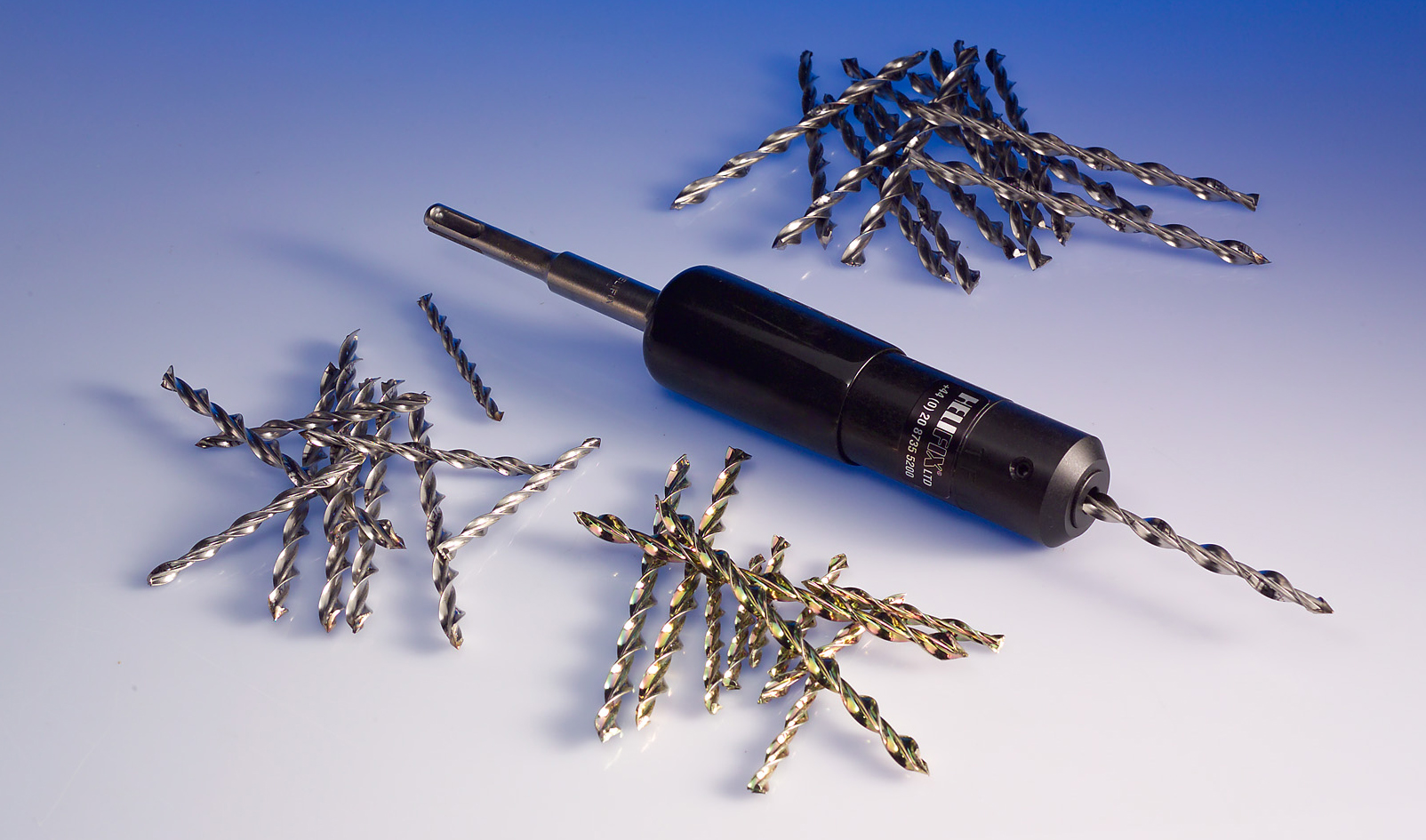

TurboFast is a versatile multi-purpose headless fixing, with great holding power, for securing timber or MDF to bricks, blocks and concrete.

TurboFast fixings have good edge distance characteristics with little tendency to split timber. In line with normal nailing practice, fixings should be kept away from edges and inserted not less than 30mm from ends. For a sound fix, timber should not be less than 19mm thick.

In line with good carpentry practice, we recommend that the fixings are never more than 600mm apart.

Where required, e.g. skirting boards prior to decoration, TurboFasts may be countersunk using a conventional nail punch.

TurboFast fixings can be driven directly through softwood and MDF but a small pilot hole may be necessary through hardwood and thicker softwood.

TurboFasts can be driven directly into aircrete and most light aggregate material but pilot holes must be drilled into hard masonry including brick, stone and concrete.

Applications

Skirtings, dado and picture rails
Door frames, window frames, cills
Battens to support kitchen cupboards
Battens for radiator and shelf brackets
Battens to support plasterboard
Battens for external cladding
Battens for vertical tile hanging
Fence and gate posts
Wall plates
Timber posts and frames to concrete floors

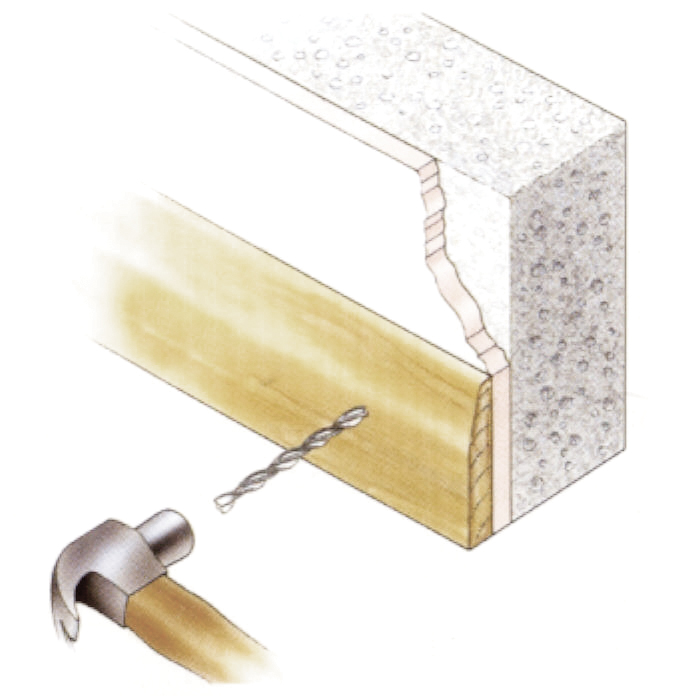

Fixing skirtings, rails and trims to blocks through plasterboard or insulation

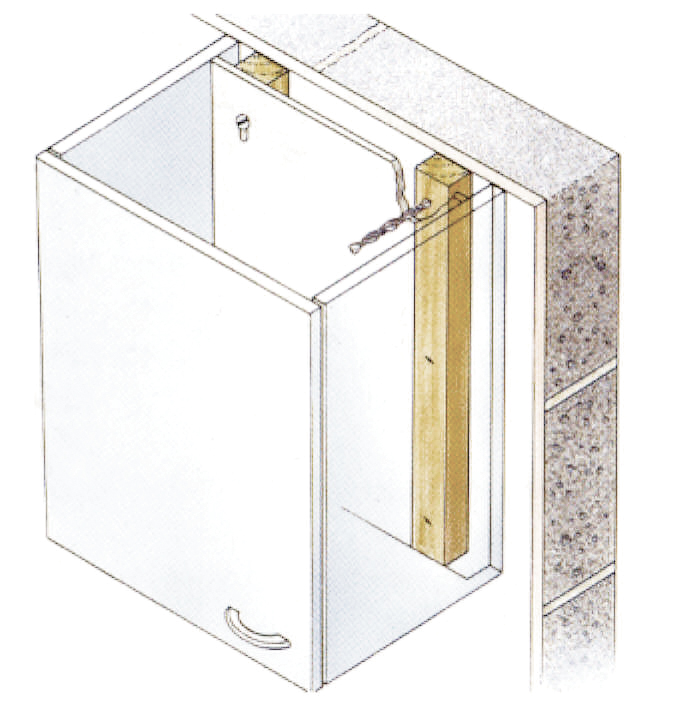

Fixing battens to blocks to support kitchen cupboards

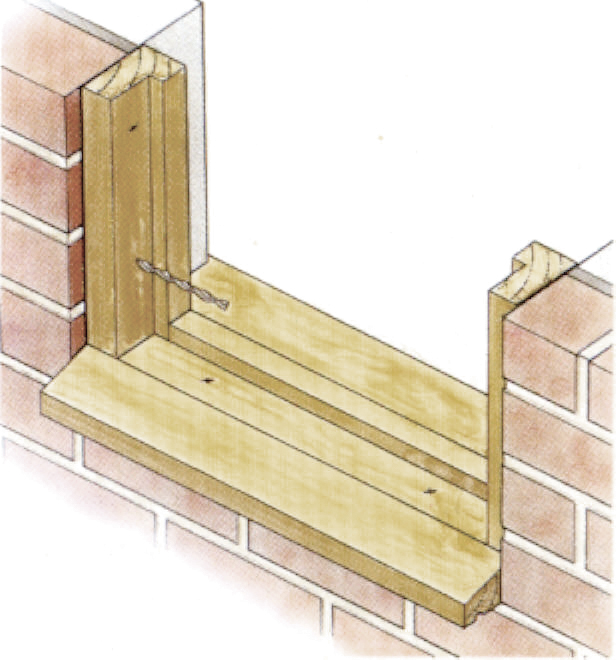

Fixing window and door frames to bricks and blocks

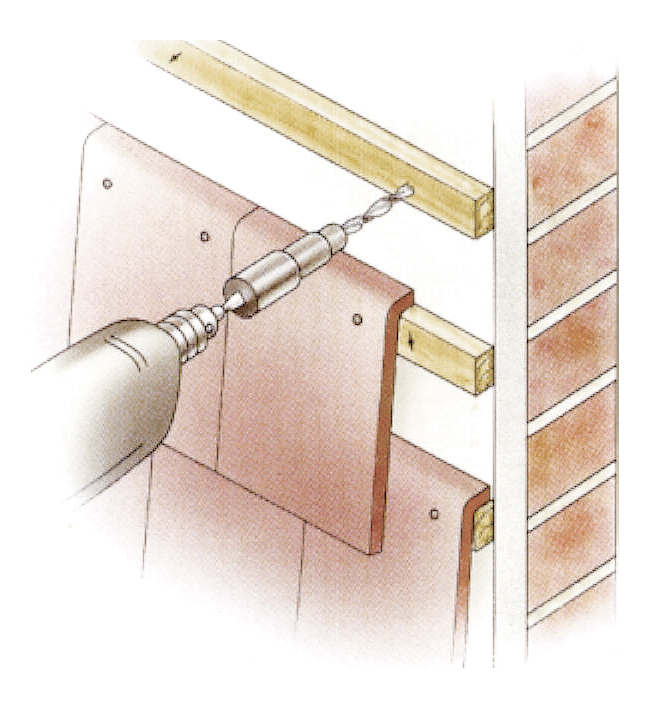

Fixing battens to bricks or blocks to support vertical tiling

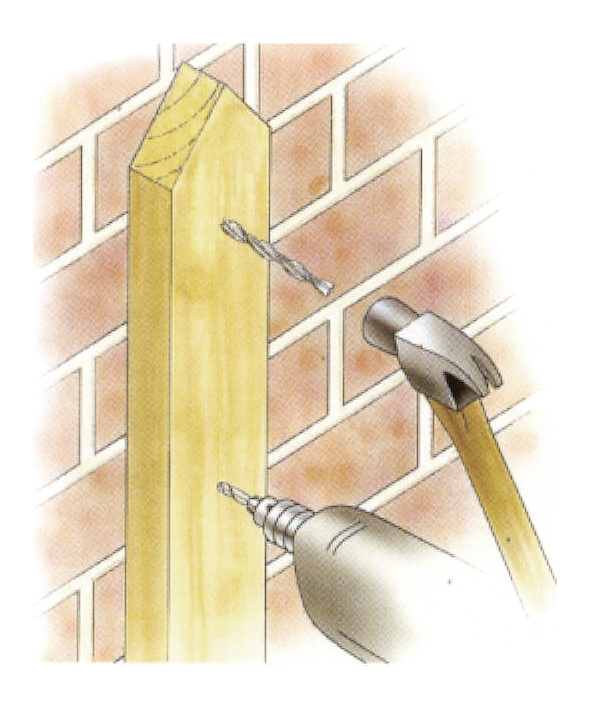

Fixing fence and gate posts to masonry

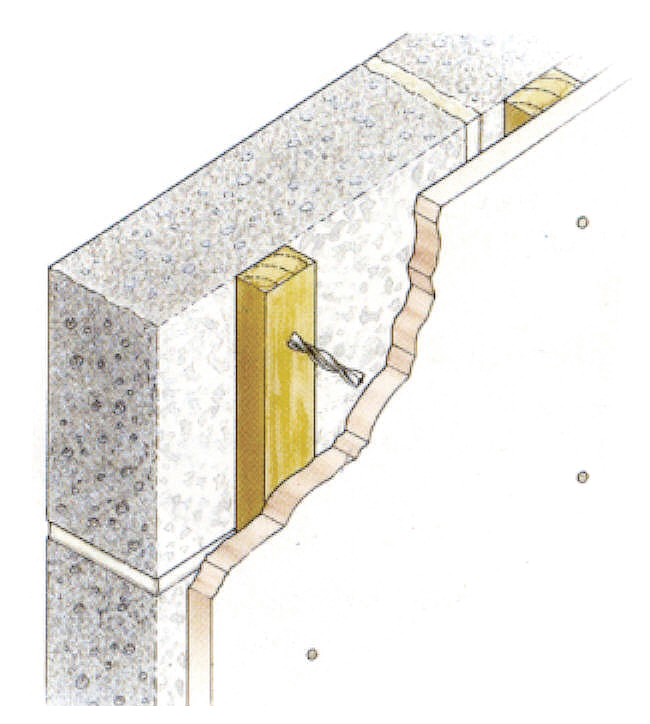

Fixing battens and timber frames to walls and floors for insulated linings and suspended floors

Technical Data

Application	Max.Min. Substrate		Fixing Diameter
	Spacing	Penetration	mm	Max. Pilot ø
Lightweight non-structural fixing, e.g. skirtings, rails wood trims, vertical battens for dry linings	600mm	50-75mm	6 or 8	4 or 6
Door frames & linings, gateposts, vertical battens for small shelf or radiator brackets	400mm	75-100mm	8	6
Lightweight structural fixing, e.g vertical battens to support kitchen cupboards, heavy shelving	250mm (1 fixing per 20kg of weight to be carried)	75-100mm	8	6
For external horizontal battens to support vertical tiling	Contact Helifix for details
